ENERGY STORAGE FOR A SUSTAINABLE WORLD



Fundamentally, countries worldwide are actively making steps towards creating more energy efficient and yet cleaner cities. As the energy industry moves away from carbon-heavy production, renewable energy and storage is being critical for delivering on the demand while securing the future of world energy and playing a prominent role in a grid that is migrating to a higher penetration of renewable energy, smarter grids, and flexible grids.

However, high penetration creates power transmission instability challenges, thus Grid Operators require stringent dynamic and static grid support features for Power Conversion Systems.

For the challenge of energy stability, Makelsan has solutions from kW to MW

Challenges that Makelsan DRM can address:

Output variability,
The temporal (time-related) mismatch between generation and demand,
Uncertainty regarding weather forecasts, and
Undesirable electrical effects on the electrical grid caused by some RE generation

Makelsan DRM solution offers proven hardware to meet storage and grid support challenges.

DEMAND RESPONSE MODULE (DRM)



DRM is a fully integrated turnkey energy storage solution that are ready for connection to medium-or high-voltage grids and cover a power range of hundreds of megawatts. With over 40 years experience in power eletronic, Makelsan has developed DRM Energy Storage System for on grid and off grid application with typical loads between 400 kW and 1 MW.

The DRM system is fully compliant with grid systems to import and export power inline with the voltage and frequency regulations, FFR and DFFR schemes required by utilities to support the grid. The DRM can be used to support the stabilisation of the grid to manage the consumption and the production of renewable energy.

Reduce Fuel Use

and carbon dioxide emissions with a greater use of clean electricity powered by wind and solar.

Increase Resiliency

manage the intermittence of renewable energy production and improve overall resiliency when the wind does not blow and when the sun doesn't shine.

Improve Power Quality

and reliability during against outages or disturbances in the grid, affecting their operation.

Save Money

reduce utility bills and generate revenue, avoid costly system upgrades, reduce operating expenses.

Generate Income

balancing electricity supply and demand, frequency response, capacity market, increased asset utilization.

Contact Us

SYSTEM CONFIGURATION



Complete Solution From Single Source

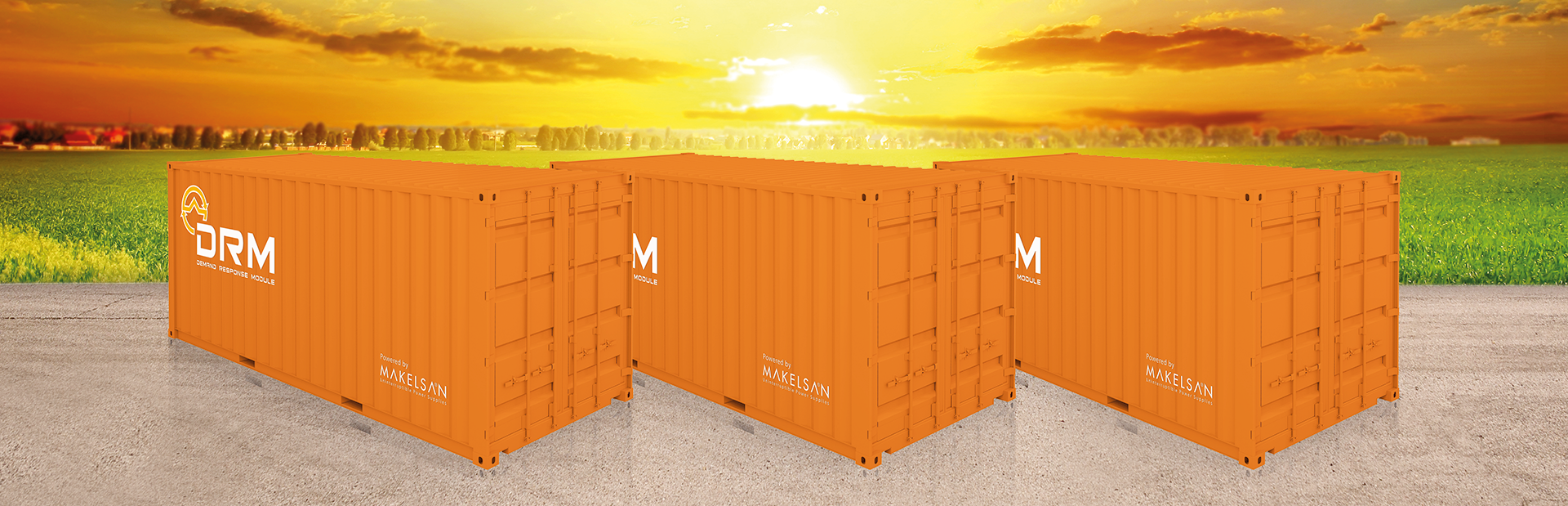

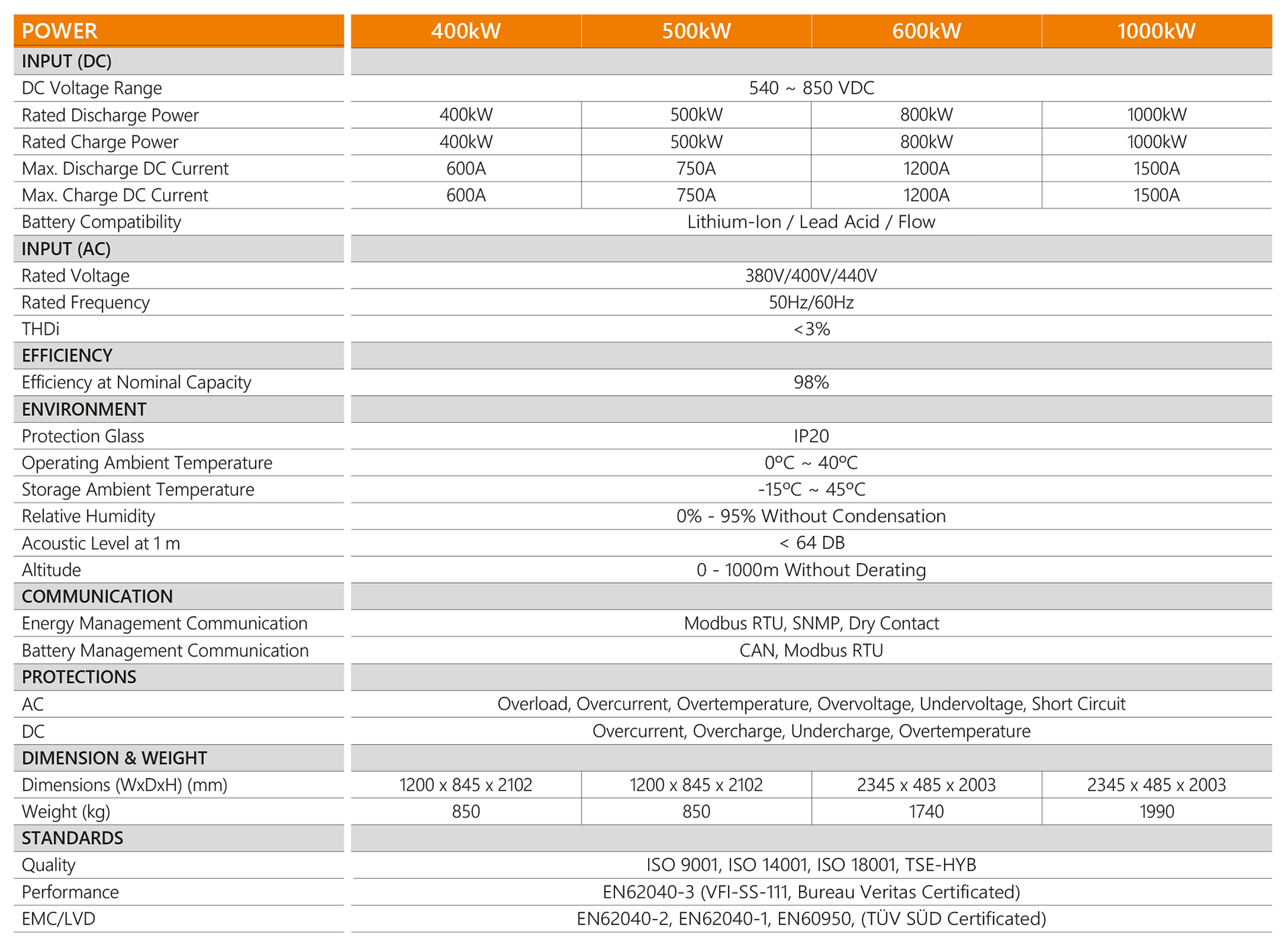

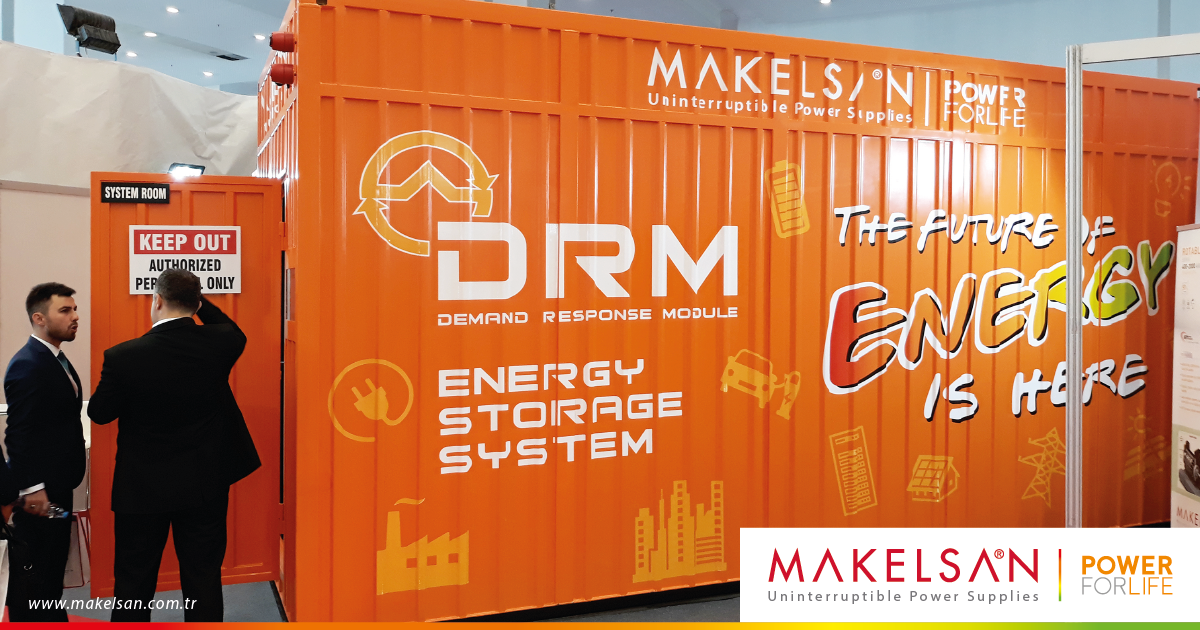

The containerised DRM system is available with 400kW, 500kW, 600kW, 1000kW capacities by using 20GP or 40HQ containers. Fully bunded ISO Container is designed with personnel and maintenance access doors and has air conditioned seperate converter and battery compartments.

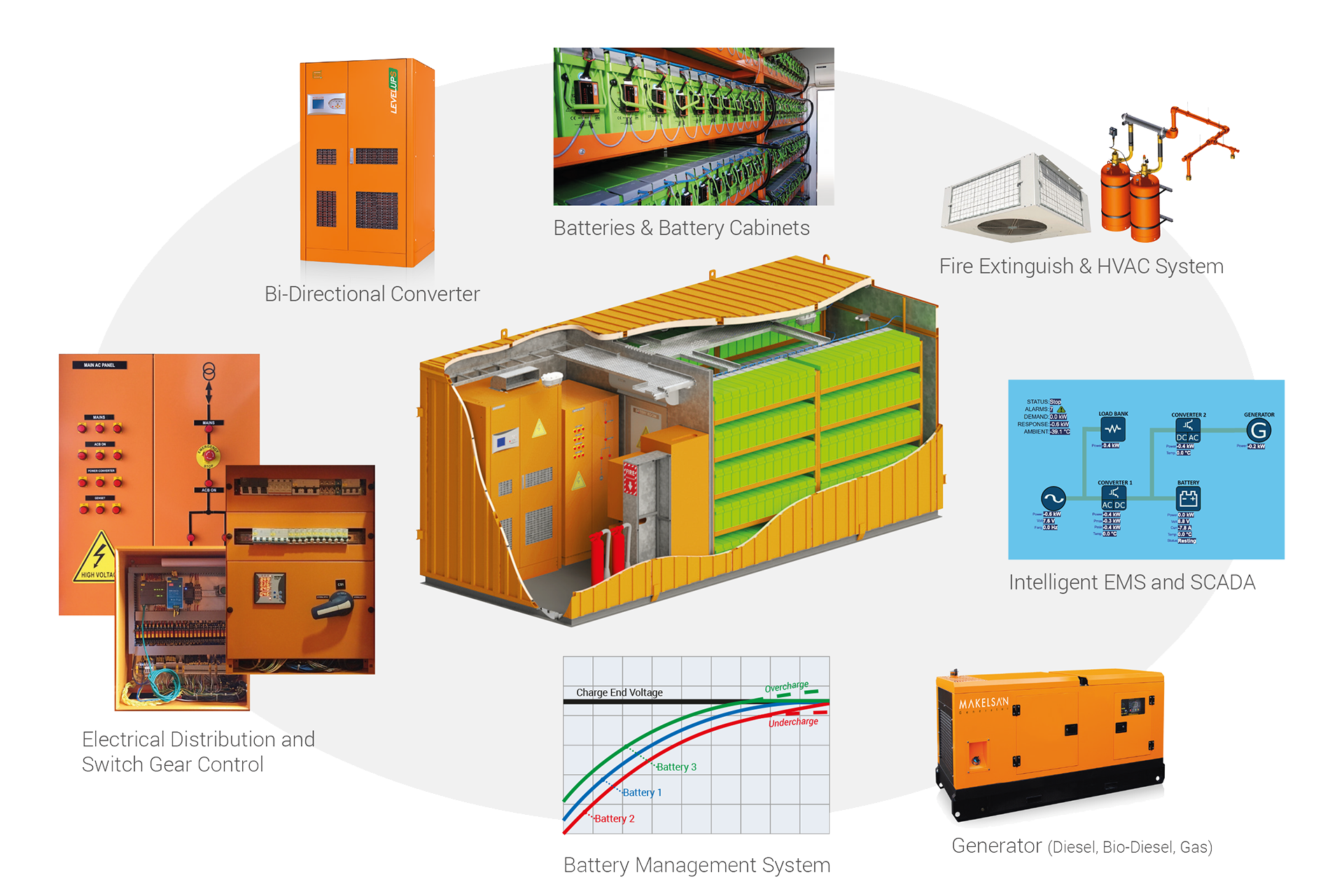

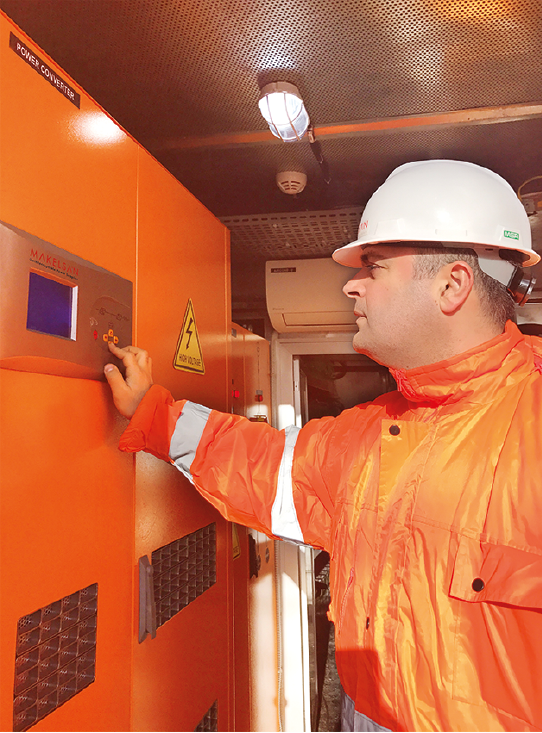

BI-DIRECTIONAL POWER CONVERTER

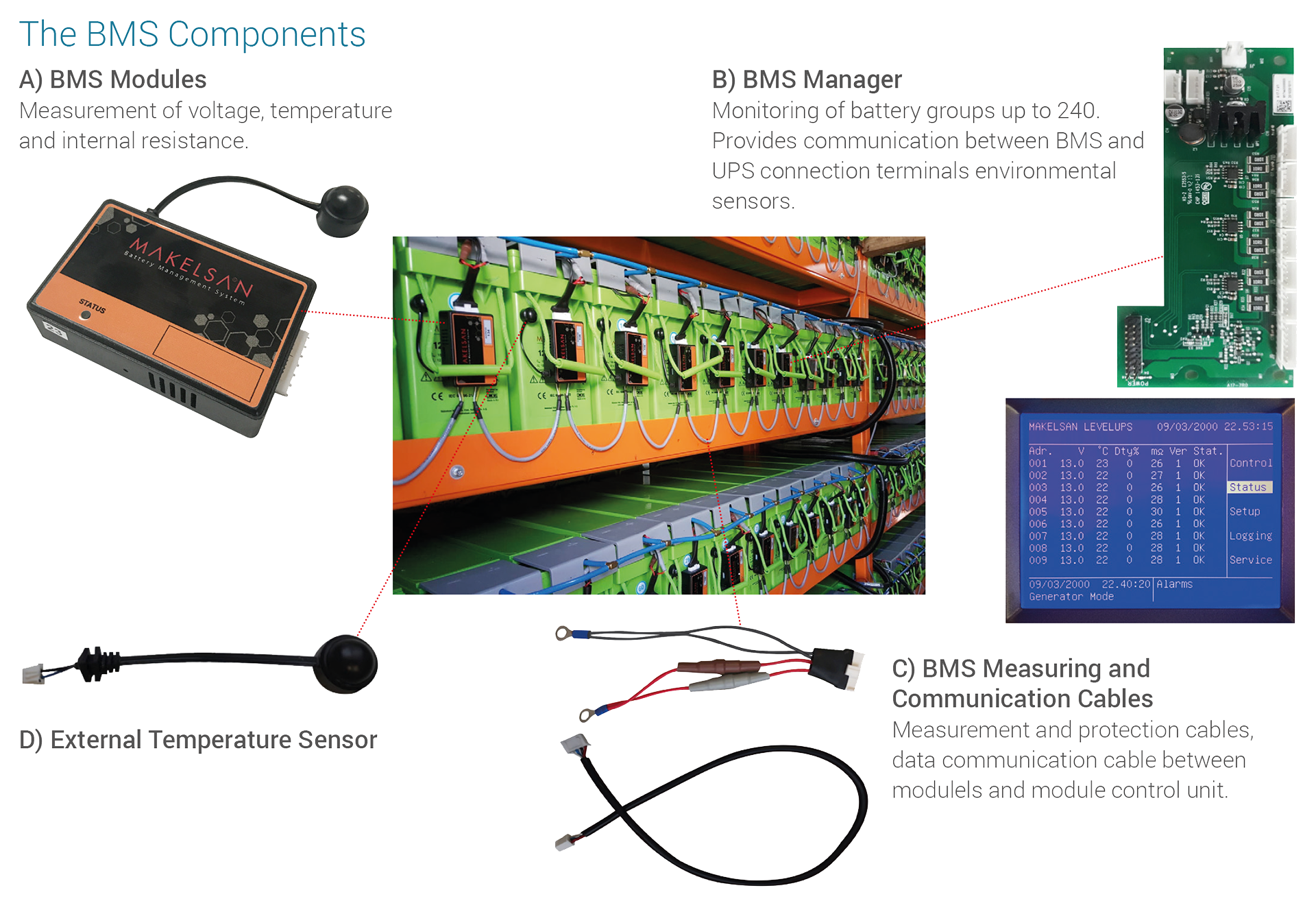

BATTERY MANAGEMENT SYSTEM
ENERGY MONITORING SYSTEM (EMS)

The size of the system is matched to the customer-specific load profile and application requirements

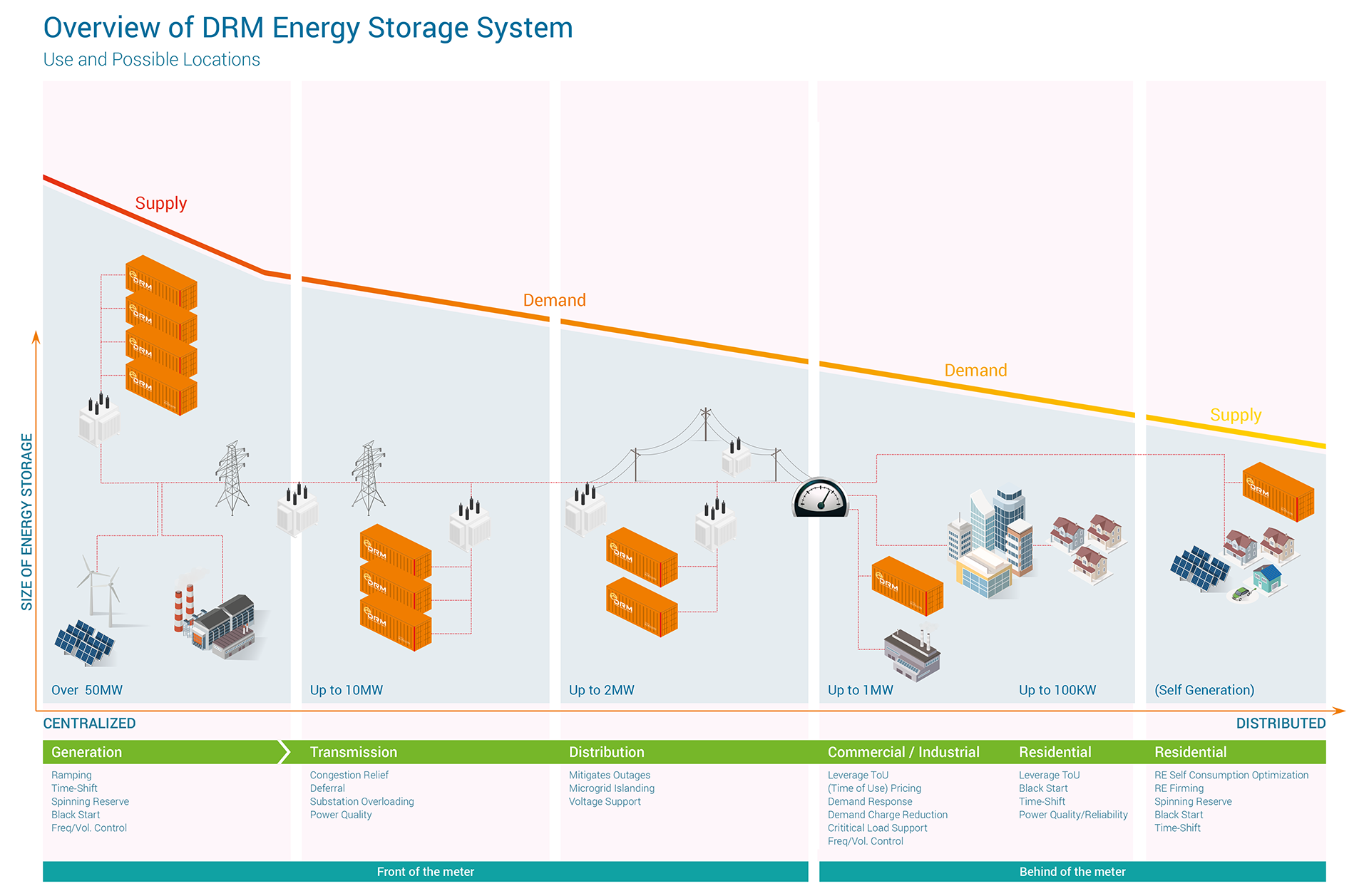

APPLICATIONS



PEAK SHAVING
FREQUENCY REGULATION
LOAD LEVELLING
RENEWABLES CAPACITY
POWER QUALITY

With peak shaving, the energy is stored during periods of low demand (overnight, troughs in the day) and discharged during periods of high demand when the monthly peak consumption could be set. Given the anticipated cycling, duration and power needs of peak shaving, energy storage is very effective. The higher the peak related to the duration of the peak, the better the energy storage economics.

DISCOVER ADVANTAGES OF DRM



MAXIMUM FLEXIBILITY

• Scalable System From Kw To Mw
• Highest Level Of Power In One Module
• Fully Integrated Turn Key Solution
• Battery Technology Independence
• Modular Architecture To Provide Future Growth
• Parallel Redundancy
• Ready For Connection To Mv Or Hv Grids
• Delivers The Highest Levels Of Availability
• Plug-and-play Design Saving Time And Cost
• With Minimum Deployment Time
• The Size Of The System Is Matched To The Customer
• Specific Load Profile And Application Requirements
• Available to Run on Diesel, B100 Bio Fuel (100%), Gas

EASILY FUNDABLE

• Delivers Exceptional Returns On Investment Outperformorming
• The Pre-determined Criteria By Grid Operators Patented Technology Approved By National Grid
• Reputable, Bankable Trusted Partner Delivering Overall System
• Extensive Experience Managing Complex Projects
• 2 Year On Site Warranty With 10 Years Extended Warranty With O&m Contract Available
• Long Term Service Management During Life Cycle
• Lowest Carbon Footprint
• Carbon Exchange Compliant
• Asset Finance Available
• Income Against Cost Positive Year In Year Out
• 2-4 Hours Maintenance Response

EXCELLENT PERFORMANCE

• High Effiency up to 98%
• High Performance In Any Climate
• Minimized Risk Due To Proven Technology
• Innovative Demand Response Software

EASY TO INSTALL

• Fully Integrated
• Front Access Operations
• Suitable For Installations In Harsh Environments And
• Extreme Weather Conditions
• Quick And Easy Maintenance

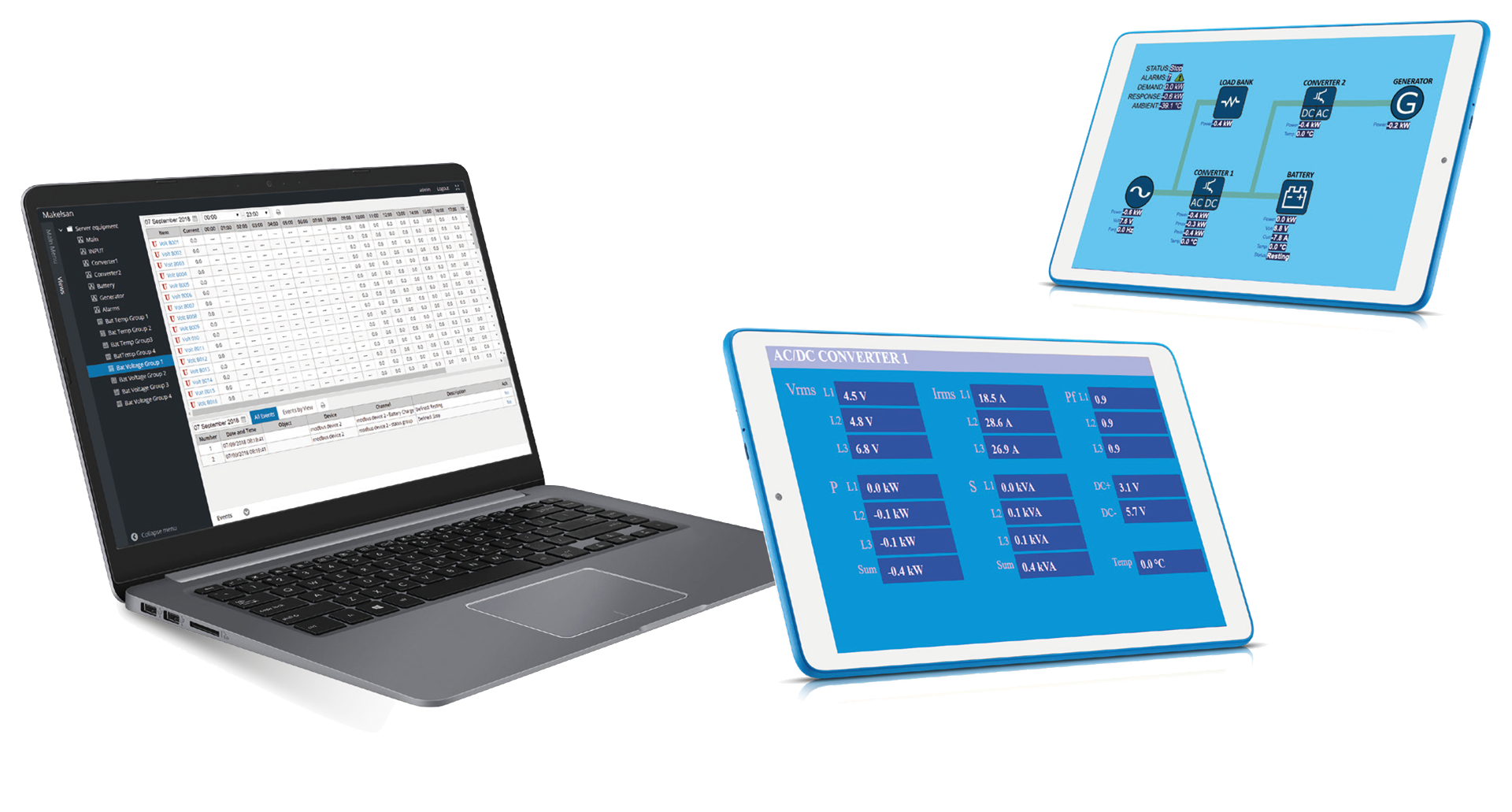

• Graphic Display For Ergonomic Operation And Monitoring

CASE STUDY

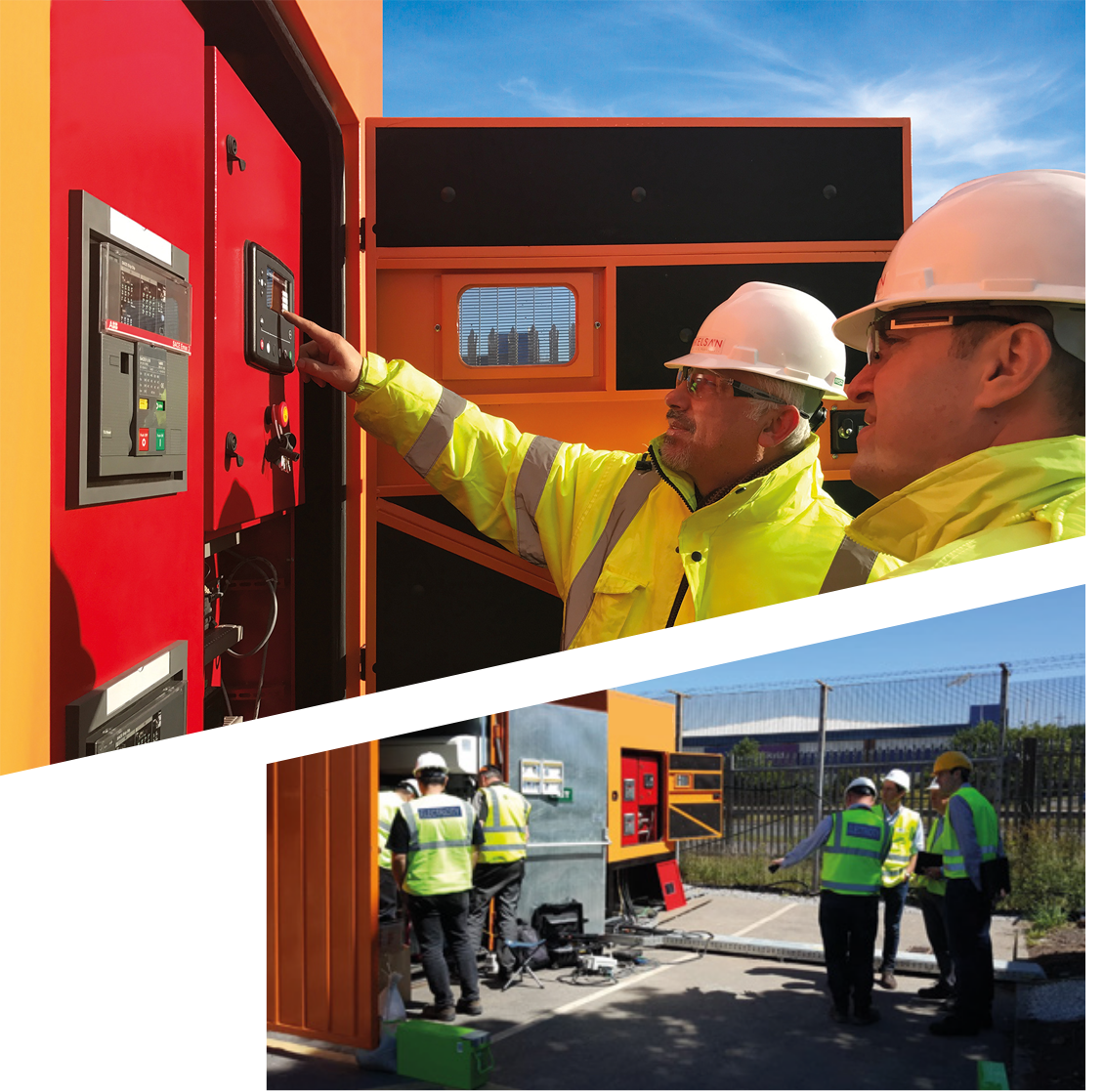

NATIONAL GRID / WHITEBIRK PLANT - THE 1ST PILOT PROJECT IN THE UK

Client: Electricity North West | Project Date: 2017 | Location: Blackburn / UK

The UK electricity grid operates at a frequency of 50 Hz, meaning current flows first one way, and then the other, 50 times per second. National Grid is responsible for managing the frequency, and is required by law to keep it between 49.5 Hz and 50.5 Hz under normal conditions.

If the frequency moves much beyond these limits, or changes rapidly, some generators will automatically disconnect from the grid for safety reasons. The end result can be unexpected power cuts and cause significant inconvenience and economic impacts.

DRM Demand Response Module installed at ENWL, Whitbirk plant provided ability to regulate grid frequency in both directions. When there is a grid overfrequency (generation > demand) inverter power output is curtailed and this energy is stored. When there is a grid under-frequency (generation < demand) inverter power output is increased by discharging the batteries and injecting more power to the grid.

The hybrid system Demand Response Module comprises a generator set and containerised power module (static power converter + batteries for 30 mins back up + BMS + EMS). The system can deliver up to 440kw and is specifically designed to operate with biodiesel B100 making it the most versatile system of its type on the market.

The customer ENWL used the existing connection to the grid to balance the frequency of the grid via importing or exporting electricity. Due to where the grid response module is placed it can also provide benefits to the commercial site through imbedded benefits such as grid resilience, TRIAD and DUoS (Distribution Use of System) avoidance thus making huge energy savings for the site owner.

Application

Frequency Regulation / DFFR service that helps National Grid control system frequency around UK in real time by balancing electricity demand with generation.

The Results

Following installation, the site used the Makelsan DRM’s charging and discharging profile to balance grid import and export.

During tests with National grid Aggregator Makelsan DRM has been approved for the control of energy usage during peak demand and high pricing periods (DUoS), reducing peak demand charges and offering potential revenue to be gained through grid contracts (Demand Side Response).

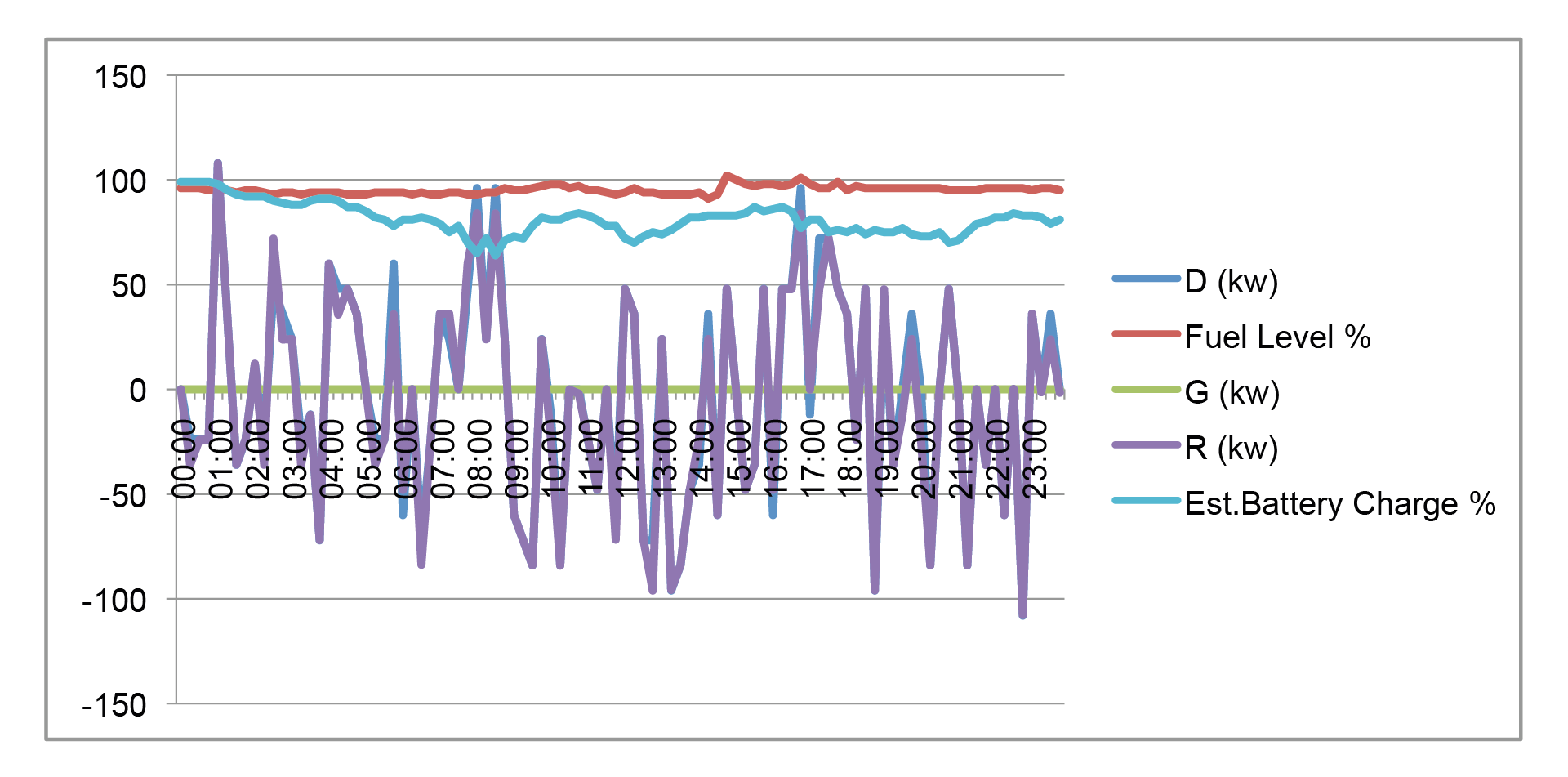

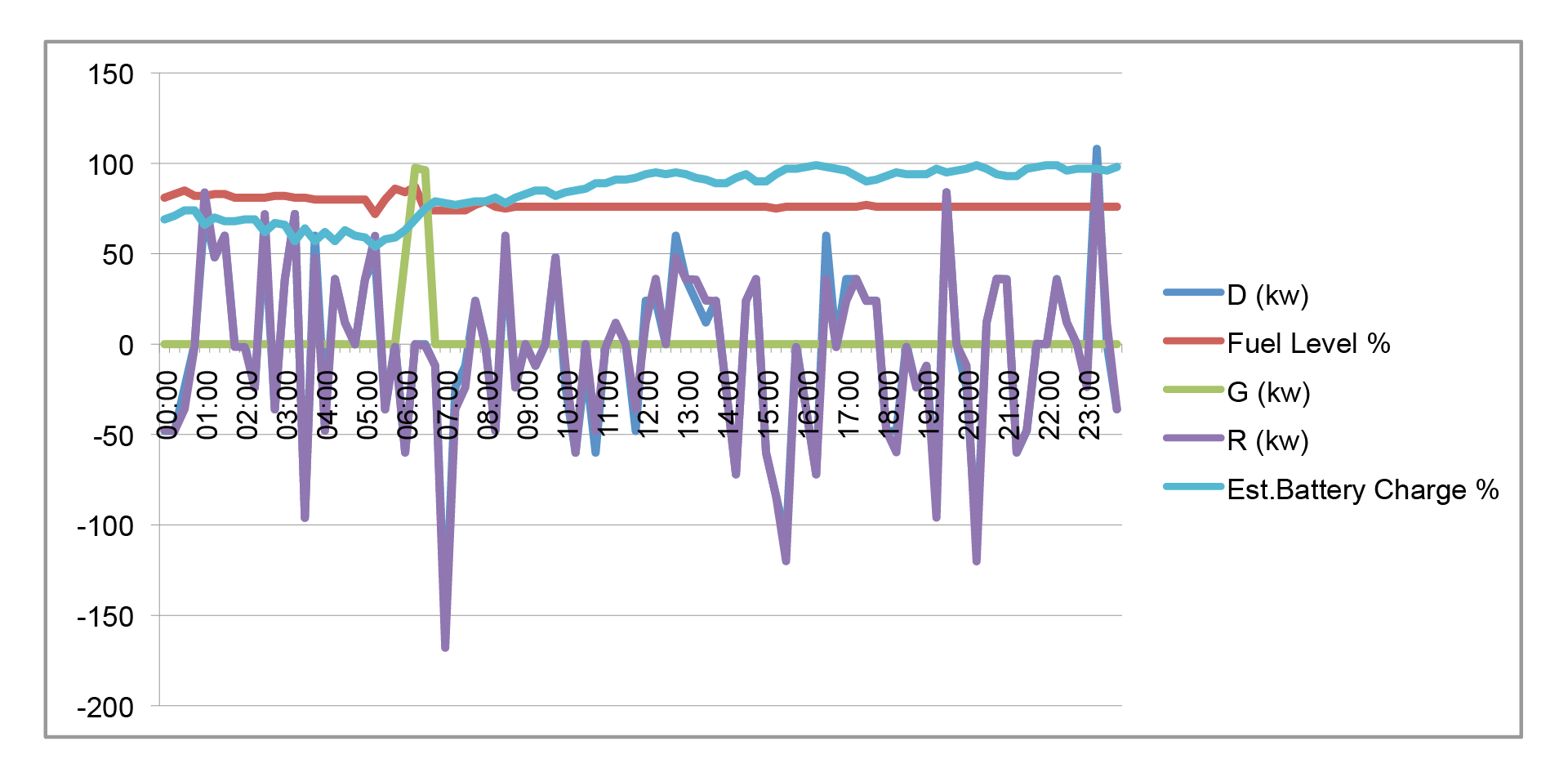

Some of national grid tests done during installation can be seen in the following charts:



Based on demand (import/export) batteries are discharged or charged. Since the trend is more export, battery charge % is slightly decreasing. As shown in the chart R (response) to D (demand) is very fast.



In case battery voltage come to low level, genset helped to charge them, then stopped.

ELECTRIC VEHICLE CHARGING



  • Not limited to the amount of power available to each charge point.
  • Can provide multiple Voltages if required. AC and DC power configurations available.
  • Is more cost effective than uprating of a localized substation.
  • Can run on multiple fuels such a Natural Gas, LPG, Diesel or Bio Fuel.
  • Is not limited by connection to grid. Therefore it is not reliant on power being available from Grid.
  • Can operate standalone which is ideal for sites where there is limited or no Electrical supply

WHY CHOOSE MAKELSAN?



Advanced Manufacturing

25.000 m² manufacturing facility.
5000 units of 3 phase UPS production per year.
More than 300 employees, first-class manufacturing facilities equipped with state of art machinery and skilled staff.
Family owned, sole proprietor company allows to have full control of decisions on the processes.

Global Sales & Distribution Network

Export to more than 80 countries across the 6 continents.
4 subsidiaries in Europe.
More than 100 global distributors.
Over 300 certified support engineers and technicians from our global service network are available to make sure that you have the help you need for your power requirements.

Innovation & Flexibility

Committed to develop leading technologies to make sure the customers get innovative and efficient products.
Continuous investment in R&D (10% of turnover).
Flexibility of customizing solutions,which makes the product easy to adapt to the customer requirements.

International Standards

All Makelsan products complies with EU directives concerning performance, safety, radio frequency emissions, electromagnetic compatibility (EMC), voltage peaks, over voltage and static charges. EN 62040-1:2008.

Power Experts


42 years experience in power electronic.
Large Project, Engineering & Contracting team with ability to integrate a full range of custom and rugged AC&DC Power Solutions.
